La serie pro esta dise?ada para profesionales de todos los ambitos de la vida. la linea presenta un rendimiento impresionante y alta calidad- al tiempo que apunta a brindar a los usuarios una experiencia increible. los usuarios que se preocupan por la productividad y la eficiencia definitivamente pueden contar con la serie msi pro para ayudarlos a realizar multiples tareas y aumentar la eficiencia.

Chipset INTEL B760
CPU Support Intel? Core? 14th/ 13th/ 12th Gen Processors- Intel? Pentium? Gold and Celeron? Processors
LGA 1700
Memory 4x DDR4- Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
? 1DPC 1R Max speed up to 4800+ MHz
? 1DPC 2R Max speed up to 4600+ MHz
? 2DPC 1R Max speed up to 4400+ MHz
? 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC- un-buffered memory
Supports Intel? Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI?
Support HDMI? 1.4- maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4- maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA- maximum resolution of 2048x1536 50Hz- 2048x1280 60Hz- 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot (Qty)
2x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 - supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode- supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0- RAID 1- RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Rear)
LAN Realtek? RTL8111H Gigabit LAN
Audio Realtek? ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

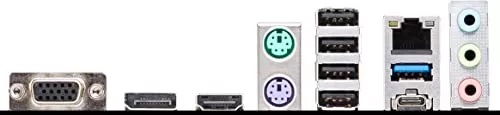

BACK PANEL PORTS
VGA
DisplayPort
HDMI?
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)

OPERATING SYSTEM Support for Windows? 11 64-bit- Windows? 10 64-bit
